Vehicle Exploded View - APRILIA MOJITO 150 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

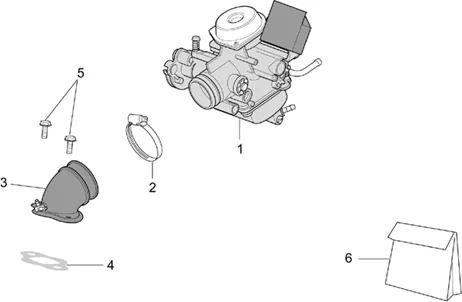

Moteur : 29.26 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/694/Mojito_150_2003-2007_29.26.PNG)
1 |
CM129206 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/9/img/73149.jpg)
1 |
CARBURETTOR CVEK-2600A "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX 2006> -CM129213- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
2 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/2/img/68702.JPG)
3 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" APRILIA 125 MOJITO 2003>2007 -827833- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/3/img/69603.jpg)
3 |
INLET MANIFOLD "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA S/APRILIA 125 SPORT-CITY, SR -849465- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/6/img/70346.jpg)
4 |
INDUCTION/MANIFOLD GASKET "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX/APRILIA 125 SPORT-CITY -871167- More informationQuantity required : 1 |
||||||
|
6 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
