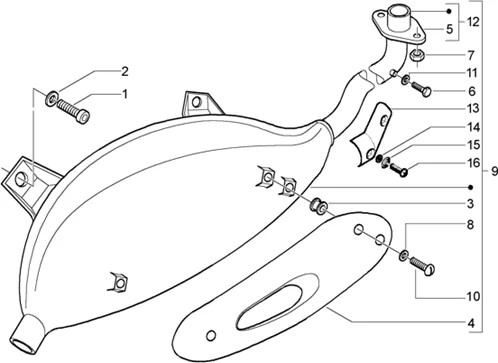

Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L 1998-2005 VESPA

Moteur : T21 SILENCIEUX
Silencieux
Search
SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792-

1
P2R reference P2R reference 65396
Maker reference Maker reference 0157925

SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792-

More information

Quantity required : 3
MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

2
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

More information

Quantity required : 3
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045-

3
P2R reference P2R reference 66779
Maker reference Maker reference 488045

SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045-

More information

Quantity required : 3
EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2004 -833986-

4
P2R reference P2R reference 92909
Maker reference Maker reference 833986

EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2004 -833986-

More information

Quantity required : 1
826391 - BRIDE

5
P2R reference P2R reference 92739
Maker reference Maker reference 826391

826391 - BRIDE

More information

Quantity required : 1
EXHAUST WASHER Ø10,2xØ15x2 FOR ALL THE RANGE -016195-

6
P2R reference P2R reference 65412
Maker reference Maker reference 0161955

EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195-

More information

Quantity required : 1
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

7
P2R reference P2R reference 66509
Maker reference Maker reference 436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

More information

Quantity required : 2
430264 - VIS

8
P2R reference P2R reference 66376
Maker reference Maker reference 430264

430264 - VIS

More information

Quantity required : 3
8475645 - SILENCIEUX

9
P2R reference P2R reference 93063
Maker reference Maker reference 8475645

8475645 - SILENCIEUX

More information

Quantity required : 1
487666 - RONDELLE

10
P2R reference P2R reference 66745
Maker reference Maker reference 487666

487666 - RONDELLE

More information

Quantity required : 3
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

11
P2R reference P2R reference 66433
Maker reference Maker reference 433122

EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

More information

Quantity required : 1
EXHAUST PIPE "PIAGGIO GENUINE PART" 125 VESPA GTS 2005> -842168-

12
P2R reference P2R reference 92958
Maker reference Maker reference 842168

EXHAUST PIPE "PIAGGIO GENUINE PART" 125 VESPA GTS 2005> -842168-

More information

Quantity required : 1
EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" 125 VESPA GT, 250 GTS -841051-

13
P2R reference P2R reference 92942
Maker reference Maker reference 841051

EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" 125 VESPA GT, 250 GTS -841051-

More information

Quantity required : 1
WATER PUMP DRIVE GEAR WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -828535-

14
P2R reference P2R reference 68762
Maker reference Maker reference 828535

WATER PUMP DRIVE GEAR WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -828535-

More information

Quantity required : 2
016405 - RONDELLE S01640500

15
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 2
433800 - BOULON

16
P2R reference P2R reference 66440
Maker reference Maker reference 433800

433800 - BOULON

More information

Quantity required : 2
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

21
P2R reference P2R reference 66744
Maker reference Maker reference 487665

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

More information

Quantity required : 1
