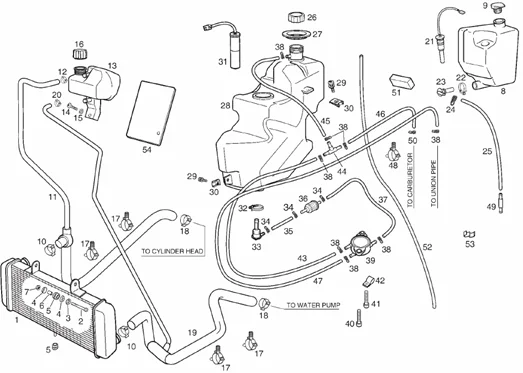

Vehicle Exploded View - DERBI GP1 50 Open 2ver E2 2006-2009 (EMEA)

	P2R reference	195110
	Maker reference	861131

861131 - SCTO.RADIADOR GP1 50CC OPEN

	P2R reference	71828
	Maker reference	AP8150165

AP8150165 - VIS

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	63883
	Maker reference	00D01500552

00D01500552 - CUVETTE

	P2R reference	63673
	Maker reference	000089150205

SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020-

	P2R reference	63882
	Maker reference	00D01500471

SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	195111
	Maker reference	861478

861478 - DEPOSITO ACEITE GP1 BASE

	P2R reference	64821
	Maker reference	00H03702061

OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 125 SC/APRILIA 50 RS 2006>2010 -00H03702061

	P2R reference	194875
	Maker reference	00D03400521

00D03400521 - COLLIER DURITE

	P2R reference	195112
	Maker reference	86162R

86162R - TUBO CULATA RADIAD.GP1 OPEN

	P2R reference	64108
	Maker reference	00G03801701

00G03801701 - BRIDE TUBE RESPIRATION R?SERVO

	P2R reference	195113
	Maker reference	861443

861443 - DPSTO.EXPANS.GP1 50CC OPEN

	P2R reference	71815
	Maker reference	AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	67743
	Maker reference	623673

COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673-

	P2R reference	194878
	Maker reference	00G03802091

00G03802091 - ABRAZ.MANGU.AGUA D25,4 GP1 250

	P2R reference	194875
	Maker reference	00D03400521

00D03400521 - COLLIER DURITE

	P2R reference	195114
	Maker reference	86163R

86163R - TUBO RADIAD.DR.BOMBA GP1 OPEN

	P2R reference	194880
	Maker reference	00H03806091

00H03806091 - ABRAZ.NORMA COBRA 16/8 W4

	P2R reference	70338
	Maker reference	867531

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -867531

	P2R reference	63932
	Maker reference	00G00400501

00G00400501 - COLLIER

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	195115
	Maker reference	00H00410321

00H00410321 - TUBO GASOLINA.

	P2R reference	194882
	Maker reference	00G00402131

00G00402131 - BOUCHON RESERV.ESSENCE V.B

	P2R reference	187313
	Maker reference	00G06200051

00G06200051 - JOINT

	P2R reference	194883
	Maker reference	00G00416011

00G00416011 - R-DEPOSITO GASOLINA GP1 250CC

	P2R reference	64151
	Maker reference	00G06800021

SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	73019
	Maker reference	CM086807

FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 125-250 X9 -CM086807-

	P2R reference	63932
	Maker reference	00G00400501

00G00400501 - COLLIER

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	189221
	Maker reference	00F00408321

00F00408321 - TUBO GRIF.GAS.-FILTR.D10X5X35

	P2R reference	194884
	Maker reference	00G00400611

00G00400611 - FILTRE A ESSENCE

	P2R reference	195016
	Maker reference	00G00400371

00G00400371 - TUBO FILTRO-BOMBA D10X6X140

	P2R reference	64817
	Maker reference	00H03701131

00H03701131 - COLLIER

	P2R reference	73126
	Maker reference	CM120903

FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903

	P2R reference	63895
	Maker reference	00D05910081

00D05910081 - VIS

	P2R reference	187338
	Maker reference	00D05900091

00D05900091 - VIS

	P2R reference	188065
	Maker reference	00H02101991

00H02101991 - ENTRETOISE

	P2R reference	189012
	Maker reference	00G03703121

00G03703121 - TUBO BOMBA A RACORD10X6X405

	P2R reference	194886
	Maker reference	862536

862536 - R-RACOR DITRIB.TUBOS DPSTO.GAS.GP1250

	P2R reference	189020
	Maker reference	00G00401781

00G00401781 - TUYAU

	P2R reference	193133
	Maker reference	862462

862462 - TUBO GASOL.DISTRB.-CARB.GP1 OPEN

	P2R reference	195018
	Maker reference	00G06803861

00G06803861 - TUBO BOMBA DEPRES.10X6X785

	P2R reference	194878
	Maker reference	00G03802091

00G03802091 - ABRAZ.MANGU.AGUA D25,4 GP1 250

	P2R reference	64098
	Maker reference	00G03701031

00G03701031 - RACCORD ENTREE DIHUILE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	195116
	Maker reference	861956

861956 - ESPUMA TOPE BATERIA GP1 OPEN 80X40X15

	P2R reference	194889
	Maker reference	00G03702461

00G03702461 - TUBO DRENAJE BOCA DPSTO.GP1 04

	P2R reference	64866
	Maker reference	00H03805091

00H03805091 -

	P2R reference	195117
	Maker reference	864115

864115 - GOMA PROTEC.CABLEADO GP1 125 LS
