Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 25km 2002 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

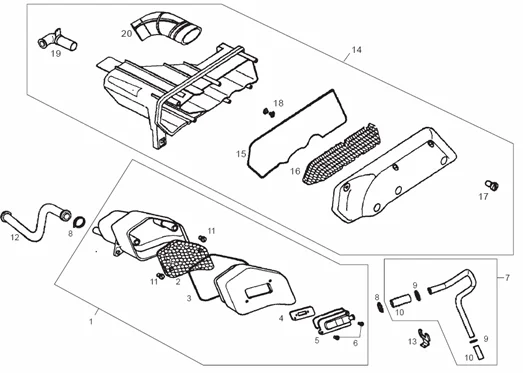

Moteur : 18 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1131/Atlantis_50_O2_25km_2002_(EMEA)_18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/2/3/img/139423.jpg)
1 |
EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 2 STROKE -8318595- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/5/img/66715.jpg)
2 |
RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -486942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/6/img/66716.jpg)
3 |
486943 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/1/img/68681.jpg)
4 |
S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -82758R More informationQuantity required : 1 |
||||||
5 |
827209 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -478533 More informationQuantity required : 1 |
||||||
|
7 |
828720 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
8 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
|
10 |
00G04200731 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
11 |
015597 - VIS S01559700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/6/img/68656.jpg)
12 |
827208 - TUBE More informationQuantity required : 1 |
||||||
|
13 |
827794 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/9/img/168759.jpg)
14 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -1A010666 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/6/img/66746.jpg)
15 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50 CC 2 STROKE 2004> -487718- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/5/img/157075.jpg)
16 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 ZIP 2T 2000>, VESPA LX 2T 2005>, LYBERTY 2T 2005>, NRG 2005>/GILERA 50 DNA, RUNNER 2005>, STALKER 2001>/APRILIA 50 SR 2012> -1A0122830P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
17 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
18 |
830056 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/7/img/68867.jpg)
19 |
829715 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/3/img/66743.jpg)
20 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 50 (COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE) -487592- More informationQuantity required : 1 |
