Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

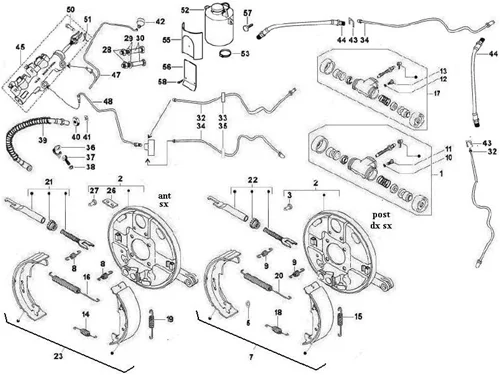

Transmisisons : 05.04 SYSTEME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_05.04_20251008090510.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/0/3/img/116303.jpg)
1 |
587616 - CYLINDRE FREIN More informationQuantity required : 1 |
||||||
2 |
602120 - DISQUE PATIN FREIN More informationQuantity required : 1 |
||||||
|
2 |
602123 - DISQUE More informationQuantity required : 1 |
||||||
|
2 |
616541 - DISQUE PATIN FREIN More informationQuantity required : 1 |
||||||
|
3 |
105498 - TAQUET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.jpg)
5 |
006968 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
006968 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/7/img/117627.jpg)
7 |
940005 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/6/img/117626.jpg)
7 |
940006 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
8 |
602497 - PINCE DE RETENUE MACHOIRES More informationQuantity required : 1 |
||||||
|
9 |
602497 - PINCE DE RETENUE MACHOIRES More informationQuantity required : 1 |
||||||
|
10 |
012536 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
063440 - VIS More informationQuantity required : 2 |
||||||
|
12 |
012536 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
063440 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/3/3/img/110533.jpg)
14 |
116088 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
15 |
178808 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
16 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038 More informationQuantity required : 1 |
||||||
|
17 |
632148 - CYLINDRE FREIN AR More informationQuantity required : 1 |
||||||
|
18 |
116088 - RESSORT More informationQuantity required : 1 |
||||||
|
19 |
178808 - RESSORT More informationQuantity required : 1 |
||||||
|
20 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
21 |
644326 - REGLAGE AUT AR AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/2/img/116452.jpg)
22 |
644327 - REGLAGE AUT AR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/0/img/151190.jpg)
23 |
940004 - JEU MACHOIRES More informationQuantity required : 1 |
||||||
|
26 |
075765 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
27 |
105498 - TAQUET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
28 |
020110 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/6/6/img/109966.jpg)
29 |
006970 - RONDELLE S00697000 More informationQuantity required : 2 |
||||||
|
30 |
267068 - VITE More informationQuantity required : 2 |
||||||
|
32 |
644813 - TUYAU DE FREIN ROUE ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
34 |
644812 - TUYAU DE FREIN ROUE ARRIERE DROITE More informationQuantity required : 1 |
||||||
|
36 |
127928 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
37 |
587829 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
38 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/4/1/img/117741.jpg)
39 |
587624 - TUYAU More informationQuantity required : 1 |
||||||
|
40 |
021216 - ECROU S02121600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/4/img/65654.jpg)
41 |
048197 - RONDELLE More informationQuantity required : 1 |
||||||
|
42 |
138237 - CAPUCHON More informationQuantity required : 1 |
||||||
|
43 |
136916 - PLAQUE More informationQuantity required : 1 |
||||||
|
44 |
644814R - CANALISATION FREINS More informationQuantity required : 2 |
||||||
|
44 |
644814R - CANALISATION FREINS More informationQuantity required : 2 |
||||||
|
45 |
605122 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
47 |
616793 - TUYAU More informationQuantity required : 1 |
||||||
|
48 |
605252 - TUYAU More informationQuantity required : 1 |
||||||
|
50 |
POULIE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/4/img/65354.jpg)
51 |
012768 - GOUPILLE S01276800 More informationQuantity required : 1 |
||||||
|
52 |
RESERVOIR HUILE |
||||||
|
53 |
632109 - COLLIER More informationQuantity required : 4 |
||||||
|
54 |
658333 - SUPPORT More informationQuantity required : 1 |
||||||
|
55 |
658519 - PROTECT. POMPE More informationQuantity required : 1 |
||||||
|
56 |
660005 - PROTECTION More informationQuantity required : 1 |
||||||
|
57 |
POMELLO |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
58 |
015900 - VIS S01590000 More informationQuantity required : 4 |
